793D Mining Truck Powertrain - Engine Engine Cat 3516B large displacement EUI four-turbocharged and after-cooled diesel engine provides 5% higher power and stronger power management capabilities in the most demanding mining operations to achieve optimal transportation performance. Design 3516B adopts a 16-cylinder four-stroke design, using a long-distance effective power stroke, and its fuel combustion is more complete and more efficient. It meets EPA standards.

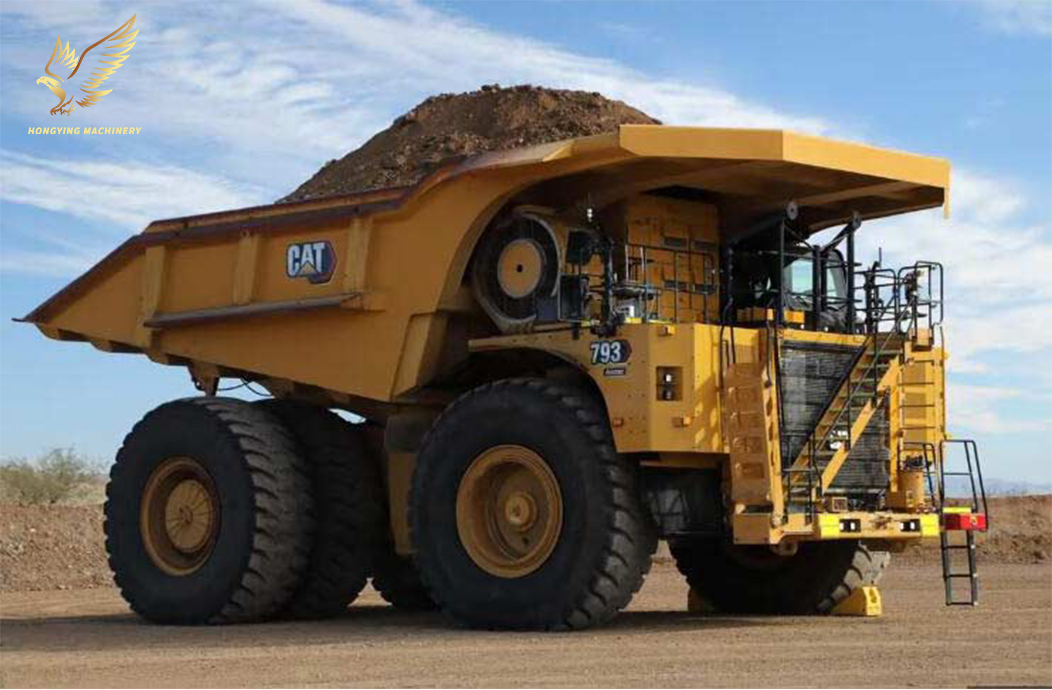

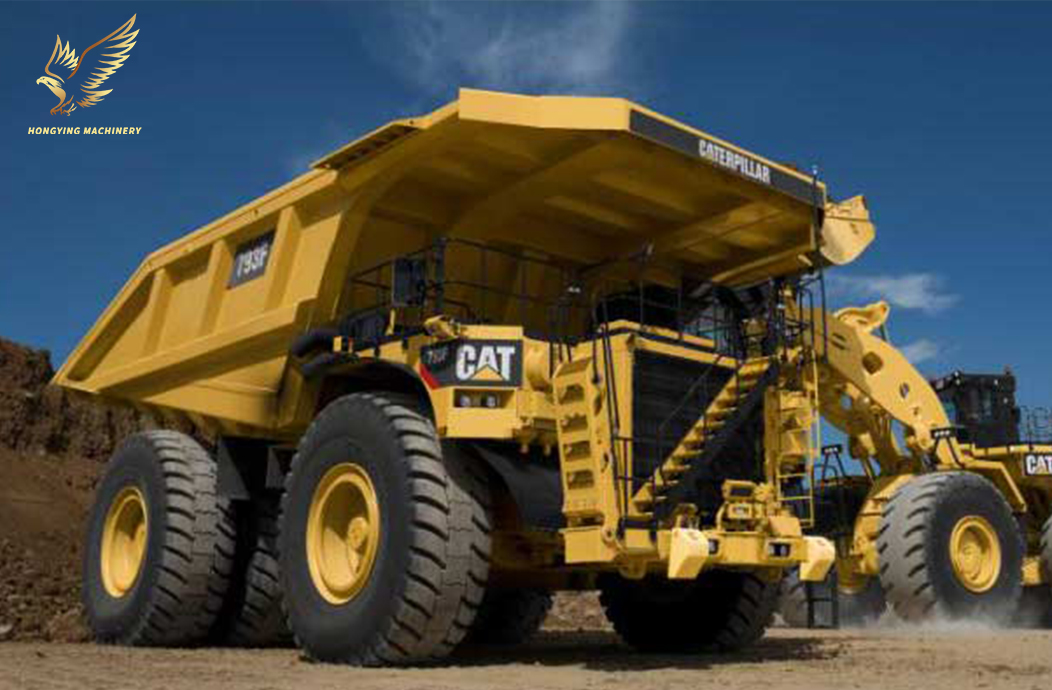

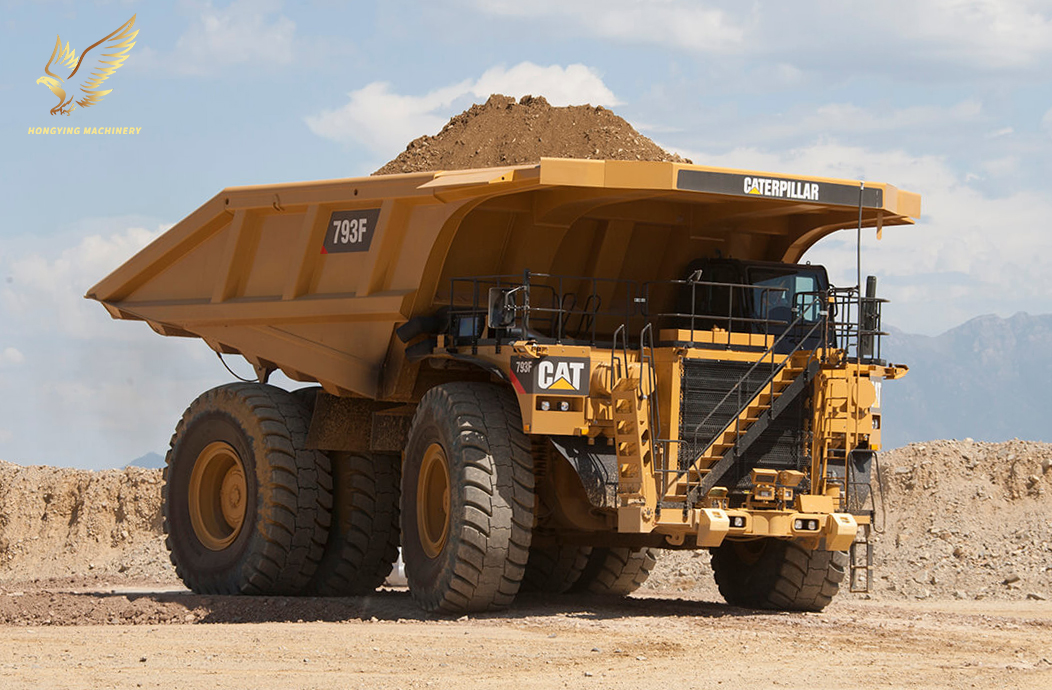

| CAT 793 Rock Truck | |
| Overall Length | 13.36m |
| Overall Width | 7.95m |
| Overall Height | 6.19m |
| payload | 240t |
| Capacity | 168方 |
| Gross Machine Operating Weight | 386 007 or 390 089 kg |
| Engine | Cat C175-16 |
| Gross Power | 1976.2kw |
| Displacement | 85L |
| Fuel Capacity | 2839.1L |
| Number Of Gears - Forward | 6 |
| Standard Tire | 40.00R57 |
| Front Axle - Empty | 48% |
| Rear Axle - Empty | 33% |
| Front Axle - Loaded - Target | 52% |
| Rear Axle - Loaded - Target | 67% |
